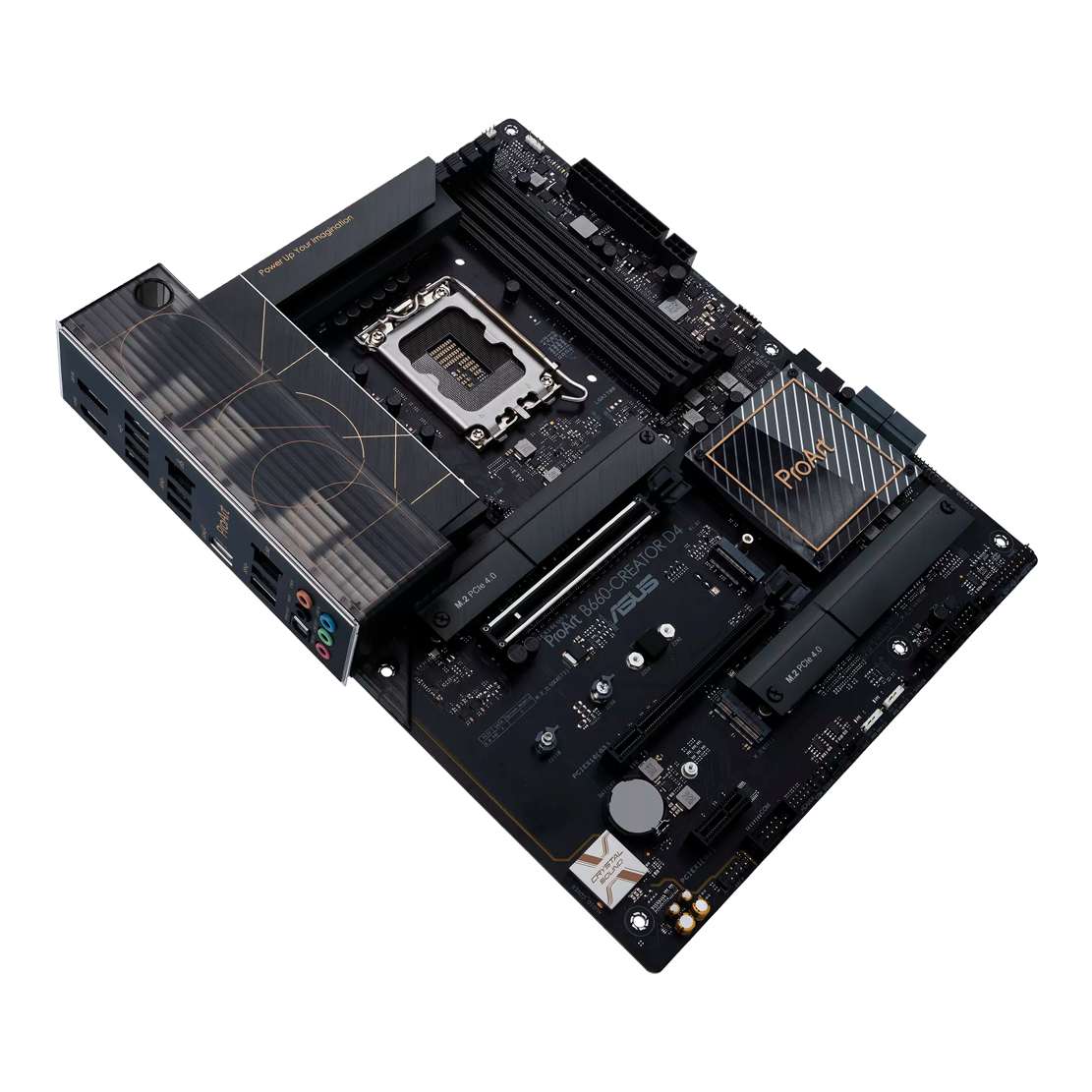

| ASUS PROART B660 CREATOR D4 |
MODEL PROART B660-CREATOR D4 CPU INTEL® SOCKET LGA1700 FOR 13TH GEN INTEL® CORE™ PROCESSORS & 12TH GEN INTEL® CORE™, PENTIUM® GOLD AND CELERON® PROCESSORS* SUPPORTS INTEL® 10 NM CPU SUPPORTS INTEL® TURBO BOOST TECHNOLOGY 2.0 AND INTEL® TURBO BOOST MAX TECHNOLOGY 3.0** * REFER TO WWW.ASUS.COM FOR CPU SUPPORT LIST. ** INTEL® TURBO BOOST MAX TECHNOLOGY 3.0 SUPPORT DEPENDS ON THE CPU TYPES. CHIPSET INTEL® B660 CHIPSET INTEL® B660 MEMORY 4 X DIMM, MAX. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 NON-ECC, UN-BUFFERED MEMORY* DUAL CHANNEL MEMORY ARCHITECTURE SUPPORTS INTEL® EXTREME MEMORY PROFILE (XMP) OPTIMEM II * ACTUAL MEMORY FREQUENCY SUPPORT DEPENDS ON THE CPU TYPES AND DRAM MODULES, FOR MORE INFORMATION REFER TO WWW.ASUS.COM FOR THE MEMORY QVL (QUALIFIED VENDORS LISTS). GRAPHICS 1 X HDMI® PORT** 1 X USB TYPE-C PORT SUPPORTS DISPLAYPORT OUTPUT*** 1 X DP IN THAT WILL HAVE OUTPUT THROUGH USB TYPE-C PORT * GRAPHICS SPECIFICATIONS MAY VARY BETWEEN CPU TYPES. PLEASE REFER TO WWW.INTEL.COM FOR ANY UPDATES. ** SUPPORT 4K@60HZ AS SPECIFIED IN HDMI 2.1. *** SUPPORT MAX. 8K@60HZ AS SPECIFIED IN DISPLAYPORT 1.4. DISPLAYPORT RESOLUTION SUPPORT DEPENDS ON GRAPHIC CARDS’ RESOLUTION. **** A DISPLAYPORT TO DISPLAYPORT CABLE IS REQUIRED FOR THE USB TYPE-C® PORT AT THE BACK PANEL TO OUTPUT DISPLAYPORT SIGNAL. EXPANSION SLOTS INTEL® 13TH & 12TH GEN PROCESSORS 1 X PCIE 5.0/4.0/3.0 X16 SLOT INTEL® B660 CHIPSET* 1 X PCIE 3.0 X16 SLOT (SUPPORTS X4 MODE) 1 X PCIE 3.0 X1 SLOT** * SUPPORTS INTEL® OPTANE MEMORY H SERIES ON PCH-ATTACHED PCIE SLOT ** PCIE X1 SHARES BANDWIDTH WITH M.2_2. PCIE X1 WILL BE DISABLE WHEN M.2_2 RUNS AT PCIE X4 MODE BY MANUALLY ENABLED. STORAGE TOTAL SUPPORTS 3 X M.2 SLOTS AND 4X SATA 6GB/S PORTS* INTEL® 13TH & 12TH GEN PROCESSORS M.2_1 SLOT (KEY M), TYPE 2242/2260/2280/22110 - INTEL® 13TH & 12TH GEN PROCESSORS SUPPORT PCIE 4.0 X4 MODE. INTEL® B660 CHIPSET** M.2_2 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 3.0 X4 MODE)*** M.2_3 SLOT (KEY M), TYPE 2242/2260/2280/22110 (SUPPORTS PCIE 4.0 X4 MODE) 4 X SATA 6GB/S PORTS*** * INTEL® RAPID STORAGE TECHNOLOGY SUPPORTS SATA RAID 0/1/5/10. ** INTEL® RAPID STORAGE TECHNOLOGY SUPPORTS INTEL® OPTANE MEMORY H SERIES ON PCH ATTACHED M.2 SLOTS. *** M.2_2 SLOT SHARES BANDWIDTH WITH PCIE X1 AND WIFI KEY E. M.2_2 WILL RUN AT PCI 3.0 X2 MODE EITHER A DEVICE IS DETECTED AT PCIE X1 OR WIFI KEY E SLOT. ETHERNET 1 X REALTEK 2.5GB ETHERNET 1 X INTEL® 1GB ETHERNET ASUS LANGUARD WIRELESS & BLUETOOTH M.2 SLOT ONLY (KEY E, PCIE)* *WI-FI MODULE IS SOLD SEPARATELY. USB REAR USB (TOTAL 9 PORTS) 1 X USB 3.2 GEN 2 TYPE-C® PORT (SHARED WITH DISPLAYPORT GRAPHIC OUTPUT) 4 X USB 3.2 GEN 1 PORTS (4 X TYPE-A) 4 X USB 2.0 PORTS (4 X TYPE-A) FRONT USB (TOTAL 7 PORTS) 1 X USB 3.2 GEN 2X2 CONNECTOR (SUPPORTS USB TYPE-C® WITH 60W PD/QC4+) 1 X USB 3.2 GEN 1 HEADER SUPPORTS ADDITIONAL 2 X USB 3.2 GEN1 PORTS 2 X USB 2.0 HEADERS SUPPORT ADDITIONAL 4 USB 2.0 PORTS AUDIO REALTEK 7.1 SURROUND SOUND HIGH DEFINITION AUDIO CODEC* - SUPPORTS: JACK-DETECTION, MULTI-STREAMING, FRONT PANEL JACK-RETASKING - SUPPORTS UP TO 24-BIT/192 KHZ PLAYBACK AUDIO FEATURES - POWER PRE-REGULATOR REDUCES POWER INPUT NOISE TO ENSURE CONSISTENT PERFORMANCE - PREMIUM AUDIO CAPACITORS - DEDICATED AUDIO PCB LAYERS - AUDIO COVER - UNIQUE DE-POP CIRCUIT * DUE TO LIMITATIONS IN HDA BANDWIDTH, 32-BIT/192 KHZ IS NOT SUPPORTED FOR 7.1 SURROUND SOUND AUDIO. BACK PANEL I/O PORTS 1 X USB TYPE-C® PORT SUPPORTS USB 3.2 GEN2 AND DISPLAYPORT OUTPUT 4 X USB 3.2 GEN 1 PORTS (4 X TYPE-A) 4 X USB 2.0 PORTS (4 X TYPE-A) 1 X DISPLAYPORT (INPUT ONLY) 1 X HDMI® PORT 1 X REALTEK 2.5GB ETHERNET PORT 1 X INTEL® 1GB ETHERNET PORT 5 X AUDIO JACKS 1 X OPTICAL S/PDIF OUT PORT INTERNAL I/O CONNECTORS FAN AND COOLING RELATED 1 X 4-PIN CPU FAN HEADER 1 X 4-PIN CPU OPT FAN HEADER 1 X 4-PIN AIO PUMP HEADER 4 X 4-PIN CHASSIS FAN HEADERS POWER RELATED 1 X 24-PIN MAIN POWER CONNECTOR 1 X 8-PIN +12V POWER CONNECTOR 1 X 4-PIN +12V POWER CONNECTOR STORAGE RELATED 3 X M.2 SLOTS (KEY M) 4 X SATA 6GB/S PORTS USB 1 X USB 3.2 GEN 2X2 CONNECTOR (SUPPORTS USB TYPE-C® WITH 60W PD/QC4+) 1 X USB 3.2 GEN 1 HEADER SUPPORTS ADDITIONAL 2 X USB 3.2 GEN1 PORTS 2 X USB 2.0 HEADERS SUPPORT ADDITIONAL 4 USB 2.0 PORTS MISCELLANEOUS 3 X ADDRESSABLE GEN 2 HEADERS 1 X AURA RGB HEADER 1 X CLEAR CMOS HEADER 1 X COM PORT HEADER 1 X FRONT PANEL AUDIO HEADER (AAFP) 1 X M.2 SLOT (KEY E) 1 X SPI TPM HEADER (14-1PIN) 1 X 20-5 PIN SYSTEM PANEL HEADER 1 X THERMAL SENSOR HEADER 1 X THUNDERBOLT™ HEADER SPECIAL FEATURES ASUS 5X PROTECTION III - DIGI+ VRM (- DIGITAL POWER DESIGN WITH DRMOS) - ENHANCED DRAM OVERCURRENT PROTECTION - ESD GUARDS - LANGUARD - OVERVOLTAGE PROTECTION - SAFESLOT - STAINLESS-STEEL BACK I/O ASUS Q-DESIGN - M.2 Q-LATCH - Q-CONNECTOR - Q-DIMM - Q-LED (CPU [RED], DRAM [YELLOW], VGA [WHITE], BOOT DEVICE [YELLOW GREEN]) - Q-SLOT ASUS THERMAL SOLUTION - FLEXIBLE M.2 HEATSINK - VRM HEATSINK DESIGN ASUS EZ DIY - PROCOOL - PRE-MOUNTED I/O SHIELD AURA SYNC - AURA RGB HEADER - ADDRESSABLE GEN 2 HEADERS SOFTWARE FEATURES ASUS EXCLUSIVE SOFTWARE ARMOURY CRATE - AURA CREATOR - AURA SYNC - FAN XPERT 4 - TWO-WAY AI NOISE CANCELATION AI SUITE 3 - PERFORMANCE AND POWER SAVING UTILITY EPU DIGI+ VRM TURBO APP ASUS CPU-Z IT MANAGEMENT SOFTWARE SUPPORTED - ASUS CONTROL CENTER EXPRESS(ACCE) PROART CREATOR HUB CREATIONFIRST NORTON ANTI-VIRUS SOFTWARE (FREE TRIAL VERSION) WINRAR UEFI BIOS ASUS EZ DIY - ASUS CRASHFREE BIOS 3 - ASUS EZ FLASH 3 - ASUS UEFI BIOS EZ MODE BIOS 128 MB MANAGEABILITY WOL BY PME, PXE ACCESSORIES CABLES 1 X DISPLAYPORT CABLE 2 X SATA 6GB/S CABLES MISCELLANEOUS 3 X M.2 RUBBER PACKAGES 1 X M.2 SSD SCREW PACKAGE 1 X Q-CONNECTOR INSTALLATION MEDIA 1 X SUPPORT DVD DOCUMENTATION 1 X ACC EXPRESS ACTIVATION KEY CARD 1 X USER GUIDE OPERATING SYSTEM WINDOWS® 11 64-BIT, WINDOWS® 10 64-BIT FORM FACTOR ATX FORM FACTOR 12 INCH X 9.6 INCH ( 30.5 CM X 24.4 CM ) |
