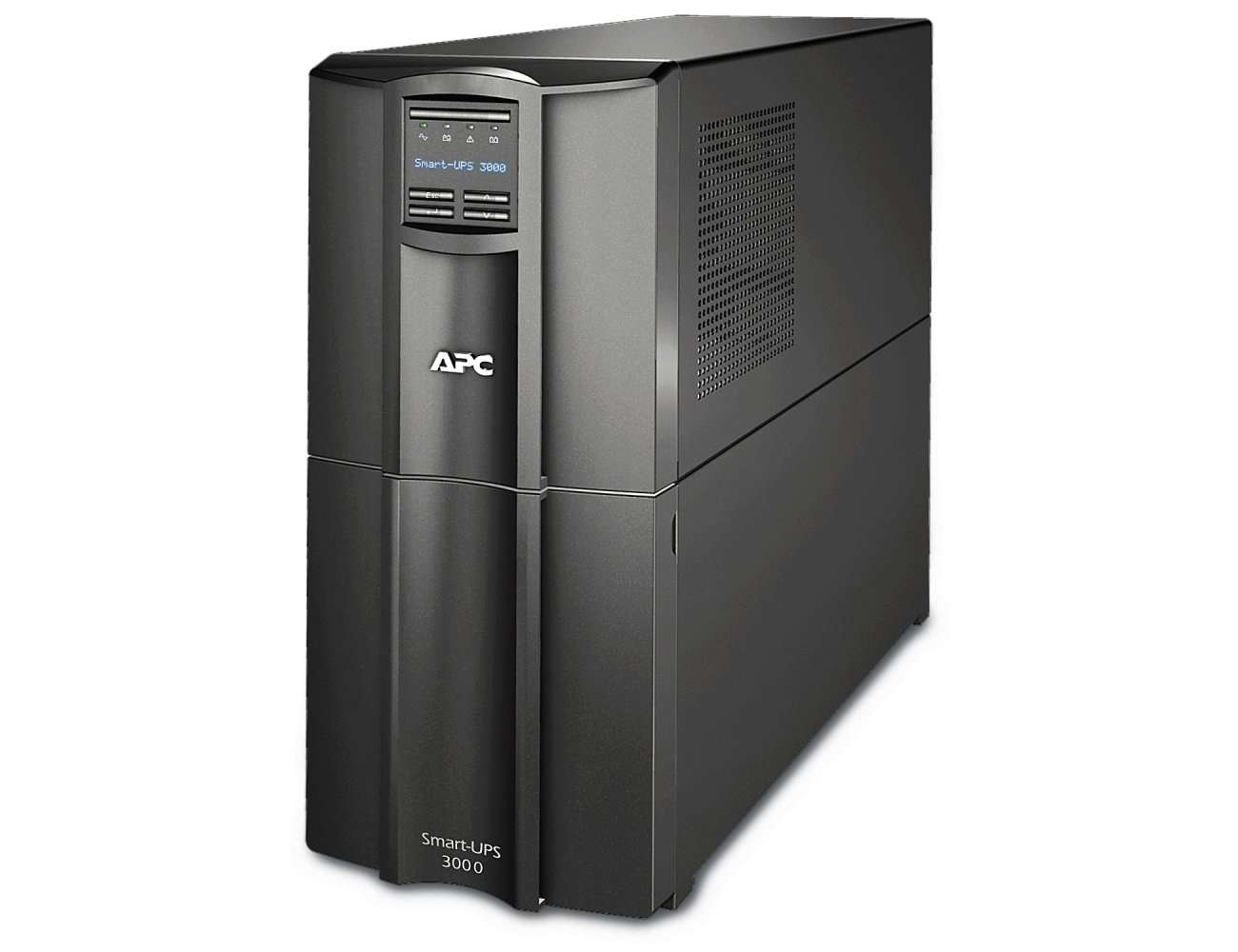

APC SMT3000IC Smart-UPS 3kVA

В наличии: In stock 10 ОБРАЗЕЦ
989000 AMD

Бренд:

В наличии:

КАТЕГОРИИ: UPS

Specifications

Overview
PresentationIntelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Lead timeUsually in Stock
Main
Run time for load
W
information_stroke
Min-max: 270-2700 W
5min 4s
Max. Capacity Used
information_stroke
100 %
Main Input Voltage230 V
Other Input Voltage220 V
240 V
Main Output Voltage230 V
Other Output Voltage220 V
240 V
rated power in W2700 W
rated power in VA3000 VA
Product or component typeUninterruptible power supply (UPS)
Input Connection TypeIEC 320 C20
Schuko CEE 7 / EU1-16P
BS1363A British
output connection type8 IEC 320 C13
2 IEC Jumpers
1 IEC 320 C19
Number of rack unit0U
Number of cables1
Battery typeLead-acid battery
Provided equipmentUSB cable
Range of productSmart-UPS
Complementary
Communication port typeSmartConnect Ethernet port
SmartSlot
Software packageSmartConnect software for remote power monitoring feature availability varies by terms of use
Batteries & Runtime
Run Time
View Runtime Graph
Efficiency
View Efficiency Graph
Additional informationConfigurable for 220 : 230 or 240 nominal output voltage
Extended runtime1
Number of battery filled slots0
Number of battery free slots0
Battery recharge time3 h
Number of battery replacement quantity1
Battery life3…5 year(s)
Replacement battery
RBC55
Battery charger power271 W rated
General
Number of power module0
Number of power module filled slots0
Number of power module free slots0
product web sub-familyCloud-enabled monitoring
RedundantNo
Physical
ColourBlack
Height43.5 cm
Width19.7 cm
Depth54.4 cm
Net weight52.5 kg
Mounting locationFront
Mounting preferenceNo preference
Mounting modeNot rack-mountable
Two post mountable0
USB compatibleYes
Input
Input voltage limits151...302 V adjustable
160...286 V
Network frequency50/60 Hz +/- 3 Hz auto-sensing
Output
Harmonic distortionLess than 5 %
Maximum configurable power in VA3000 VA
Maximum configurable power in W2700 W
Transfer time6 ms typical : 10 ms maximum
UPS typeLine interactive
Wave typeSine wave
Output frequency50/60 Hz +/- 3 Hz sync to mains
Conformance
Product certificationsCE
EAC
RCM
VDE
UK PSTI
StandardsEN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Environmental
Acoustic level53 dBA
Heat dissipation375 Btu/h
Operating altitude0...10000 ft
Ambient air temperature for operation0…40 °C
Ambient air temperature for storage-15…45 °C
Storage altitude0.0000000000…15240.0000000000 m
Relative humidity0…95 %
Storage Relative Humidity0…95 %
Communications & Management
control panelMultifunction LCD status and control console
Emergency power offYes
Free slots1
Communication port supportSmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
AlarmAlarm when on battery : distinctive low battery alarm : configurable delays
Surge Protection and Filtering
Surge energy rate365 J
Noise suppressionFull time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
