Benq MX550 3600AL XGA Projector with SmartEco Power

Availability: In stock 3 SAMPLE
169000 AMD

Brand:

Availability:

CATEGORIES: PROJECTORS

All Specifications

Display

  • Brightness (ANSI lumens)
    3600
  • Resolution
    XGA (1024x768)
  • Native Aspect Ratio
    4:3
  • Contrast Ratio (FOFO)
    20,000:1
  • Display Color
    30-bit (1.07 billion colors)
  • Light Source
    Lamp
  • Light Source Life
    a. Normal 5000 hrs, c. SmartEco 10000 hrs, d. LampSave 15000 hrs, b. ECO 10000 hrs

    • Optical

  • Throw Ratio
    1.96~2.15
  • Zoom Ratio
    1.1x
  • Lens
    F/# = 2.56 ~ 2.68, f = 22 ~ 24.1 mm
  • Projection Offset (Full-Height)
    110%
  • Keystone Adjustment
    1D, Vertical ± 30 degrees

    • Picture

  • Picture Modes
    3D, Bright, Infographic, Presentation, sRGB, User 1, User 2

    • Compatibility

  • Resolution Support
    VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
  • Horizontal Frequency
    15K~102KHz

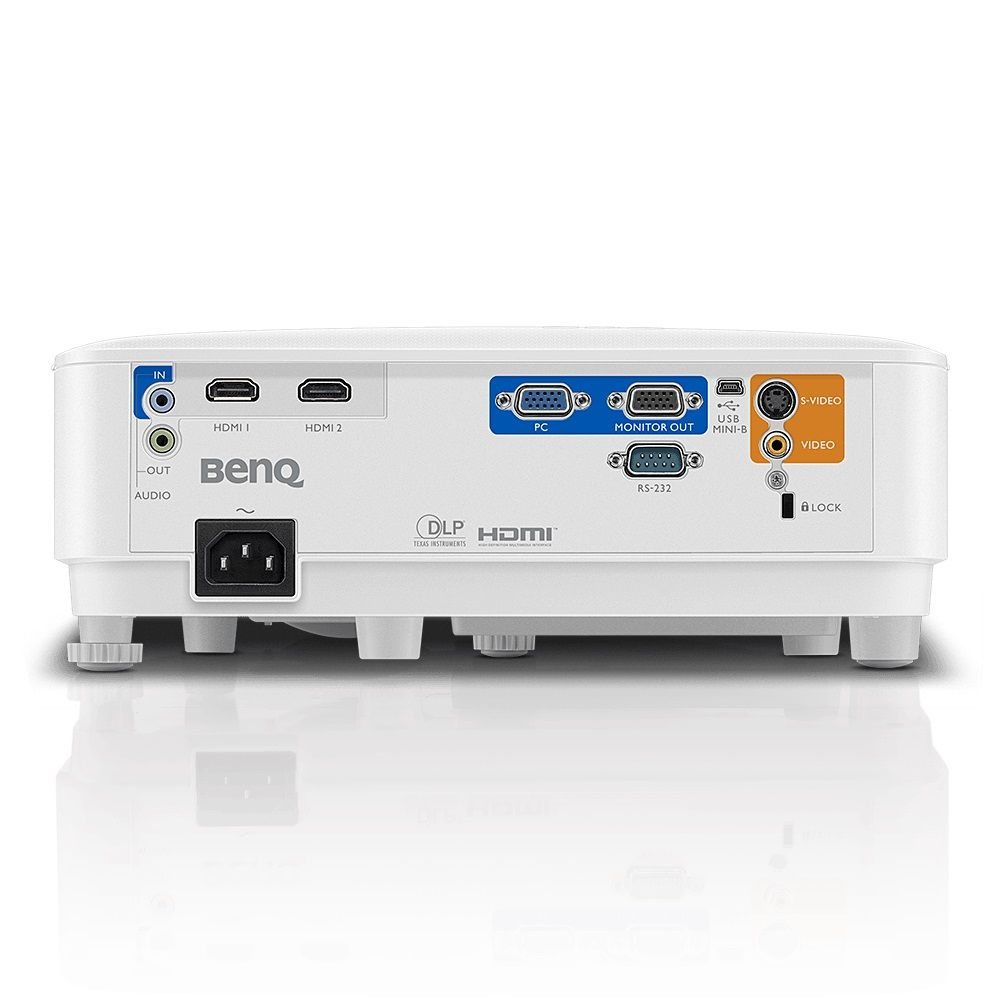

    • I/O Interface

  • PC in (D-sub 15pin)
    (x1)
  • Monitor out (D-sub 15pin)
    (x1)
  • Composite Video in (RCA)
    (x1)
  • S-Video in (Mini DIN 4pin)
    (x1)
  • HDMI in
    (x2), HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4)
  • USB Type Mini B
    (x1)
  • RS232 in (DB-9pin)
    (x1)

    • Audio

  • Speaker
    2W
  • Audio in (3.5mm Mini Jack)
    (x1)
  • Audio out (3.5mm Mini Jack)
    (x1)

    • Environment

  • Operating Temperature
    0~40℃
  • Power Supply
    AC 100 to 240 V, 50/60 Hz
  • Typical Power Consumption (110V)
    ~270W
  • Acoustic Noise (Typ./Eco.)(dB)
    33/29

    • Accessories

  • Remote Control w/ Battery
    RCX014
  • Power Cord (by region)
    x1 (1.8M)
  • VGA(D-sub 15pin) Cable
    1 (1.5m)
  • User Manual CD
    1 (24L)
  • 3D Glasses
    DGD5, (Optional)
  • Quick Start Guide
    (x1) 18L
  • Warranty Card (by region)
    Yes
  • Universal Ceiling Mount
    CM00G3, (Optional)

    • Dimension & Weight

  • Dimensions (WxHxD) (mm)
    296 x120 x221
  • Net Weight (kg)
    2.3

    • Projection System

  • Projection System
    DLP
